Wave-On TM Mounts
Wave-On TM Mounts
Solderable mounts can be factory installed to practically
every board-mountable heat sink and flat sided extrusion.
The female threaded through holes permit pre-assembly
to the semiconductor via machine screws , allowing the

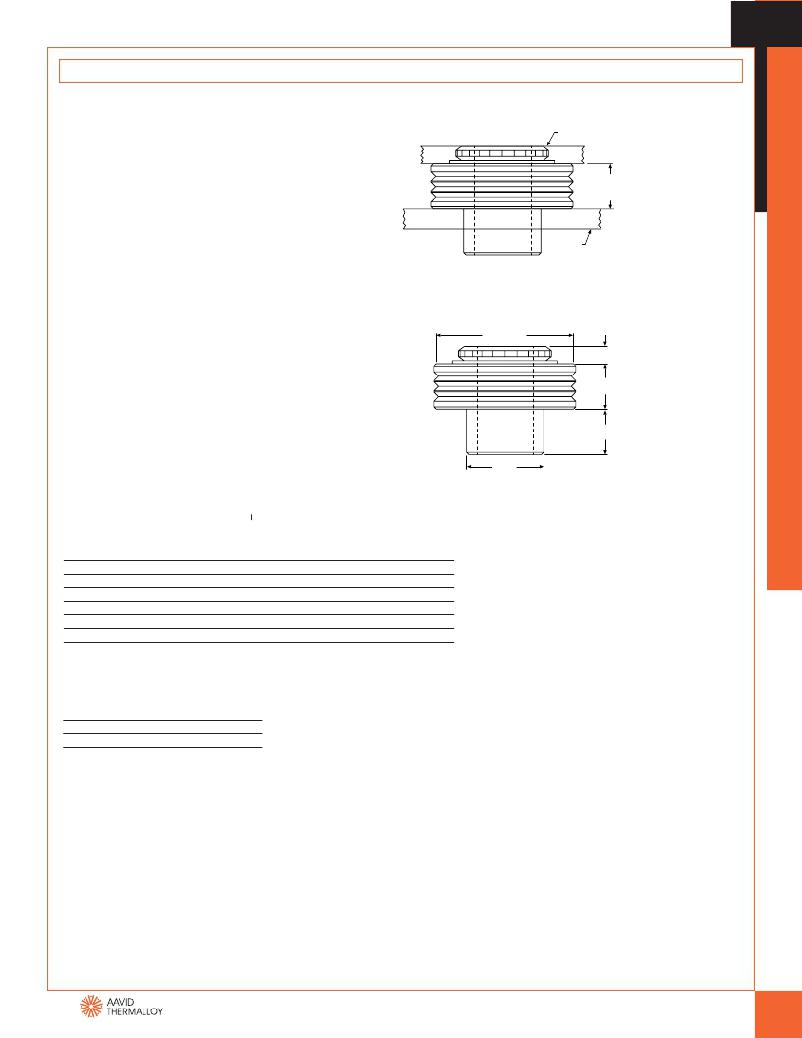

Typical Wave-On TM mount installation
HEAT SINK
heat sink/semiconductor package to be treated as one unit
when fitted in PC board through holes for wave soldering.
DIM "C"
STAND-OFF LENGTH
FEATURES
Saves production time and cost
? Cuts production steps by half
? Factory installation eliminates steps
? Permits soldering in one step
? All the benefits of female threaded mount
? Automated fastening
? Excellent solderability
Better thermal performance
? Built in stand-off adds air space between PCB
and heat sink for improved air flow and easier
cleaning
? No lockwashers, nuts or separate
7.92
(0.312)
DIM "T"
PC BOARD
"D"
"C"
"B"
mounts with various thread lengths
"A"
ORDERING INFORMATION
example part 574802B0 _ _ 00G
Ordering code
Threaded
Ordering code
01
02
03
04
05
07
09
Model
E
EA
EG
EH
EK
EM
ER
“A” Dim
4.32 (0.170)
3.43 (0.135)
3.43 (0.135)
4.32 (0.170)
4.32 (0.170)
4.32 (0.170)
4.32 (0.170)
“B” Dim
2.54 (0.100)
2.54 (0.100)
2.54 (0.100)
3.43 (0.135)
2.54 (0.100)
2.54 (0.100)
2.54 (0.100)
“C” Dim
2.54 (0.100)
2.54 (0.100)
1.14 (0.045)
2.54 (0.100)
1.14 (0.045)
2.54 (0.100)
5.08 (0.200)
“D” Dim
0.96 (0.038)
0.96 (0.038)
0.96 (0.038)
0.96 (0.038)
0.96 (0.038)
0.96 (0.038)
0.96 (0.038)
thru holes
#6-32
#4-40
#4-40
#6-32
#6-32
3.5MM
#6-32
Dia of PCB plated
PCB
Model
EA, EG
E, EK, EM, ER
EH
thru hole
3.68 (0.145)
4.75 (0.187)
4.75 (0.187)
thickness “T”
1.57 (0.062)
1.57 (0.062)
2.29 (0.090)
AMERICA
USA Tel: +1 (603) 224-9988 email: info@aavid.com
ASIA
Singapore Tel: +65 6362 8388 email: sales@aavid.com.sg
www.aavidthermalloy.com
EUROPE
Italy Tel: +39 051 764011 email: sales.it@aavid.com
United Kingdom Tel: +44 1793 401400 email: sales.uk@aavid.com
Taiwan Tel: +886 (2) 2698-9888 email: sales@aavid.com.tw
89
